CP Probe

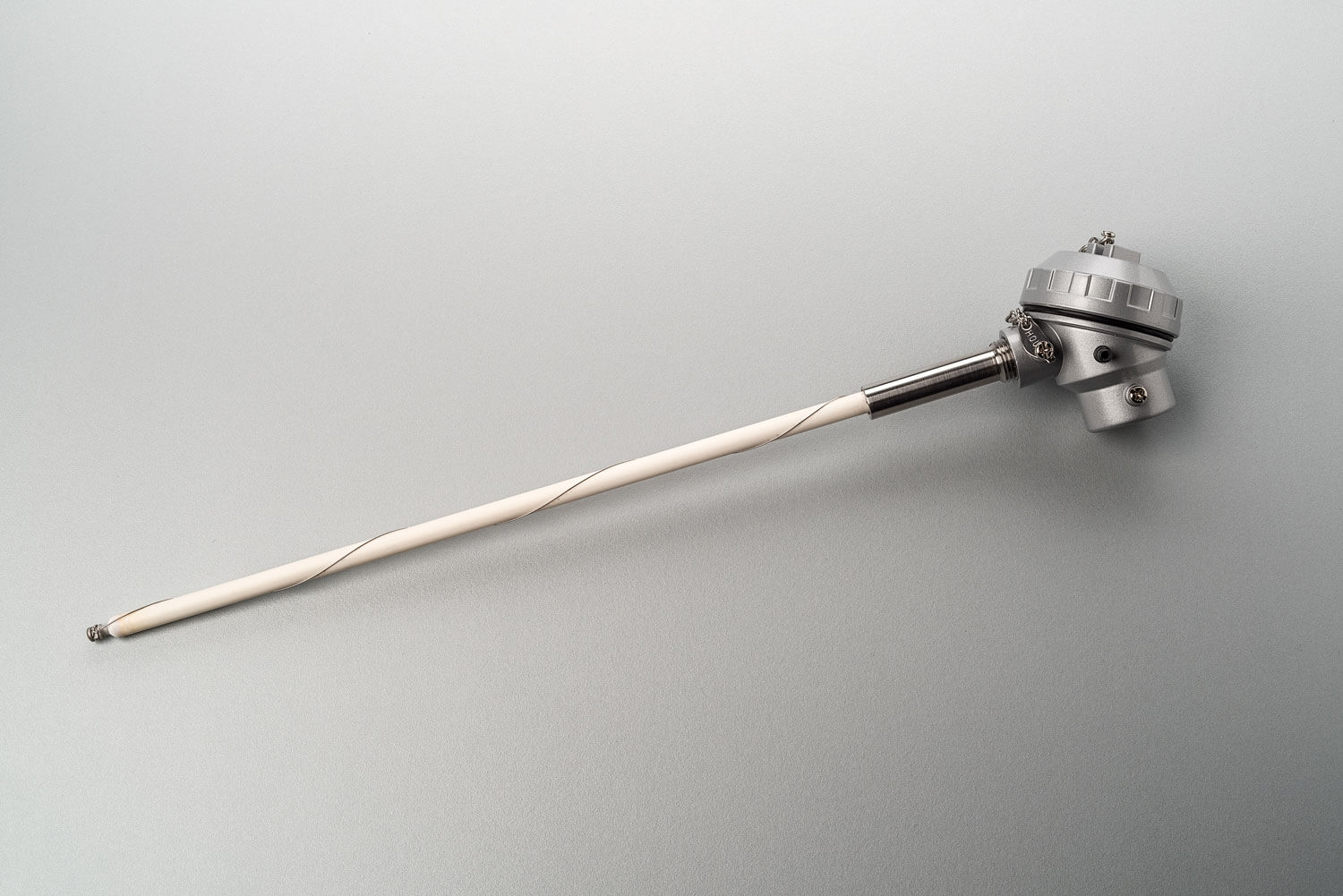

Pottery Oxygen Probe

The CP general oxygen probe is designed for the measurement and control of oxidising or reducing atmospheres in pottery kilns.

The design uses an all ceramic oxygen sensor and high quality platinum wiring to provide a probe that can be used up to 1700°C.

For harsh environments such as wood-burning kilns, the CP probe is available with an optional ceramic sheath for extended life and additional protection.

The sensor operates in situ, and measures oxygen concentration in real time, without the need for expensive gas sampling, or gas extraction equipment.

The probe comes standard with a K-type thermocouple. This can be upgraded to an R-type thermocouple for increased accuracy and a higher maximum temperature.

The CP probe is recommended by world-leading potters.

Read more about using this probe for pottery.


  • Specific for O2
  • High O2 sensitivity and selectivity
  • High dynamic range of detection
  • High temperature of operation
  • Rapid responses
  • In situ measurement
  • Solid state electronic component – rugged sensor
  • No power consumed for operation (all conditions)
  • No bias required to operate
  • Available up to 1350 mm
